Visual inspection while installed

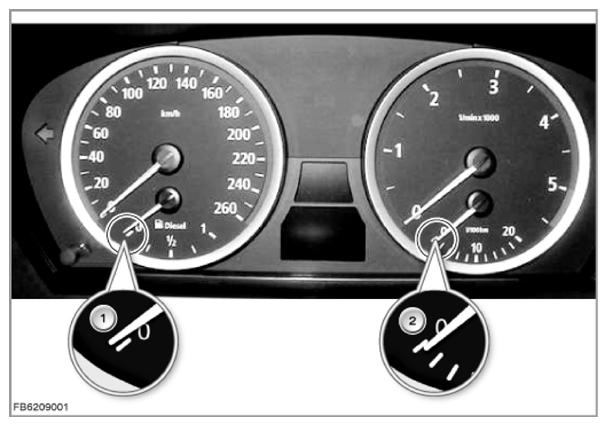

- Check the inclination of the needles as well as position of the zero points of the needles for inaccuracy. The needles have been inserted automatically. The tolerances are very low.
Courtesy of BMW OF NORTH AMERICA, INC.
| Item |
Description |
| 1 |
Fuel gauge needle |
| 2 |
Fuel consumption needle |
- Check for damage and fingerprints on the dial as well as the inside of the glass cover.
- Check the inside of the glass cover for scratches.
- Check whether the needle grinds against the glass cover, especially the needle for the current fuel consumption.
