CVM: Convertible top module

The convertible top module (CVM) controls all the electric and hydraulic functions of the convertible top. The convertible top module is connected on the K-CAN.

The convertible top module is fitted at the partition wall to the luggage compartment.

Under certain block conditions, the CVM cannot execute a convertible top movement (see 'SYSTEM FUNCTIONS').

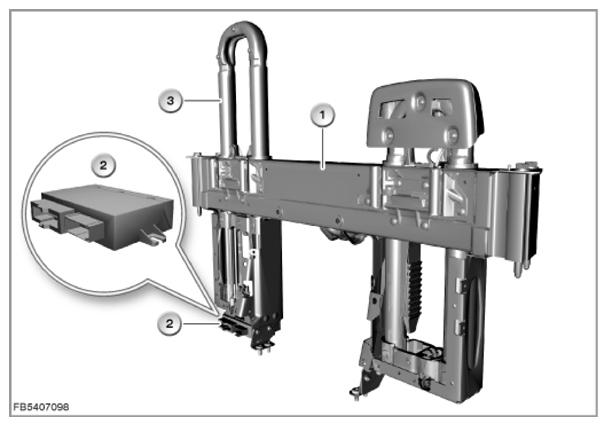

Fig 1: Identifying Convertible Top Module Components

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Explanation
1	Rollover protection system
2	Convertible top module (CVM)
3	Roll bars (extended)
