Bulb Holder

Vibrations can be transferred to the bulb via the bulb holder, thus damaging the bulb. The graphic below depicts the attachment of a sponge-rubber strip to the bulb holder in order to rectify this fault.

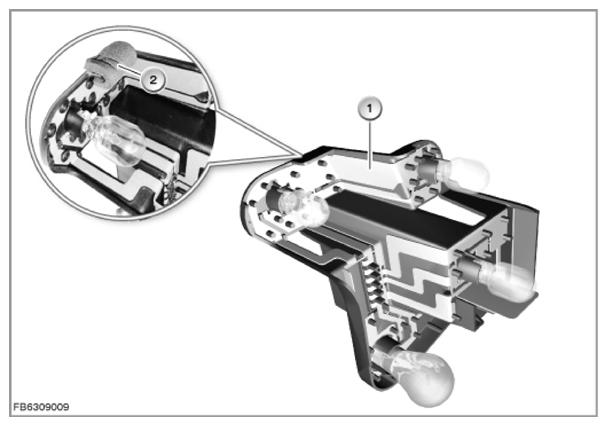

Fig 1: Identifying Bulb Holder And Sponge-Rubber Strip
G09895126Courtesy of BMW OF NORTH AMERICA, INC.
Position Explanation
1 Bulb holder
2 Sponge-rubber strip
