13 62 531 Replacing coolant temperature sensor (N63 B40/B44 O 0/1)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of scalding!
Only perform this repair work after engine has cooled down.
Only perform this repair work after engine has cooled down.
IMPORTANT:
Protect alternator against coolant.
Cover alternator with suitable apparatus (risk of damage).
Cover alternator with suitable apparatus (risk of damage).
Necessary preliminary tasks:
- Read out fault memory of the DDE control unit, work through test plans if necessary.
- Switch off ignition.
- Remove AUXILIARY WATER PUMP for exhaust turbocharger.

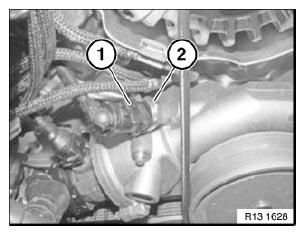

Unlock connector (1) and remove.
Unfasten coolant temperature sensor (2).
Installation note:
Tightening torque 13 62 1AZ .
Clear diagnostic fault entries from fault memory.
