11 78 540 Replacing left monitor sensor (S65)
Special tools required:
- 11 7 030
WARNING:
Scalding hazard!
Only perform these tasks after exhaust system has cooled down.
Only perform these tasks after exhaust system has cooled down.
Necessary preliminary tasks:
- Read out fault memory in Digital Motor Electronics (DME)
- Remove transmission underbody protection

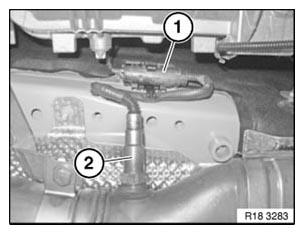

Disconnect plug connection (1).
Remove monitor sensor with special tool 11 7 030.
Installation:
If the monitor sensor is reused, only apply a thin and uniform coat of Never Seez Compound to thread.
The part of the oxygen monitor sensor which projects into the exhaust system branch (sensor ceramic) must not be cleaned or come into contact with lubricant.
IMPORTANT:
Reinstall plug connection (1) and cable routing without fail in condition on delivery (see illustrationFig 1).
Risk of damage if this instruction is not observed!
Risk of damage if this instruction is not observed!
Secure monitor sensor (2) with special tool 11 7 030 and a torque wrench.
Tightening torque: 11 78 1AZ .
Add final details to vehicle.
Check function of DME.
