61 31 299 Removing and installing/replacing clutch switch module

Necessary preliminary tasks:

NOTE: Clutch master cylinder (2) is removed for purposes of clarity.

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.

Unlock plug (4) and disconnect from housing (3).

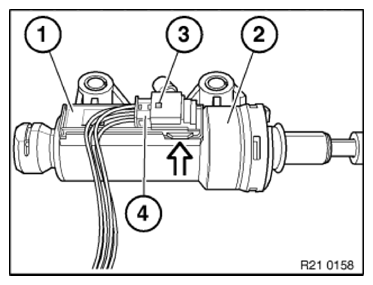

Fig 1: Locating Clutch Master Cylinder And Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clutch switch module is secured against incorrect installation.

Clutch switch module must snap audibly into place.

Fig 2: Identifying Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.
