61 31 194 Removing and installing/replacing Drivelogic button (M3)

Necessary preliminary tasks:

• Remove TRIM FOR STORAGE COMPARTMENT

Unlock catches (1) with a suitable tool.

Remove Drivelogic button (2) in direction of arrow from storage compartment trim (3).

Installation:

Make sure Drivelogic button (2) is correctly seated on storage compartment trim (3).

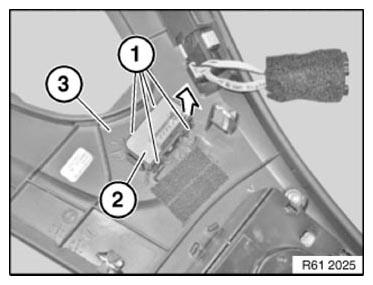

Fig 1: Removing Drivelogic Button

Courtesy of BMW OF NORTH AMERICA, INC.
