61 31 052 Removing and installing/replacing center console control panel (without CCC/ASK)

Necessary preliminary tasks:

Remove CONTROL PANEL FOR HEATER/AIR CONDITIONING SYSTEM

Replacement:

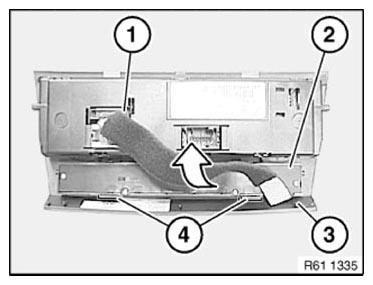

Unfasten plug connection (1) and disconnect.

Unclip center console control panel (2) at retaining points (4).

Remove center console control panel (2) in direction of arrow from cover (3).

Assign buttons according to vehicle equipment.

Fig 1: Removing Center Console Control Panel At Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement note!

Excess length of ribbon cable!

To avoid damage and rattling noise, the ribbon cable must be fitted and secured correctly!

Installation note:

Replacement on vehicles with control panel for automatic climate control:

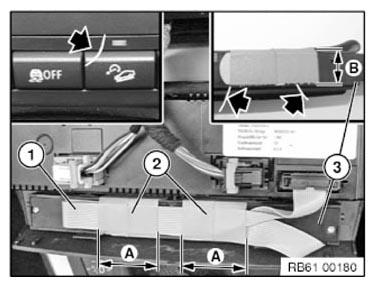

Install ribbon cable (1) as illustrated and secure over a wide area (A) with adhesive tape (2). Use the entire length of the side face (B) of the center console switch cluster (3) for this purpose.

IMPORTANT: The customer may notice threads of adhesive tape (see arrow)!

Therefore, cleanly cut off adhesive strips!

Fig 2: Installing Ribbon Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Refer to INFORMATION ON SECURING COMPONENTS WITH ADHESIVE TAPE .

Installation note:

Replacement on vehicles with control panel for air conditioning system:

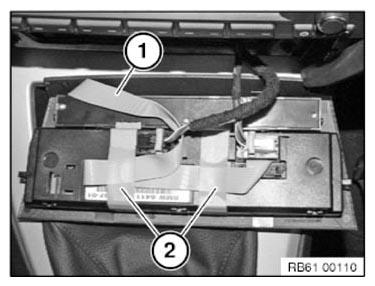

Install ribbon cable (1) as illustrated and secure with two adhesive strips (2).

Cleanly cut off adhesive strips (2).

Refer to INFORMATION ON SECURING COMPONENTS WITH ADHESIVE TAPE .

Fig 3: Identifying Adhesive Strips And Ribbon Cable

Courtesy of BMW OF NORTH AMERICA, INC.
