61 31 037 Removing and installing/replacing light control unit

Special tools required:

• 00 9 317

Necessary preliminary tasks:

• Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON LEFT

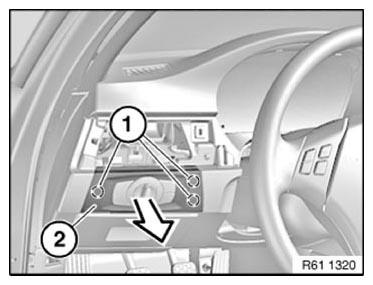

Lever out trim of light control unit (2) with special tool 00 9 317 at fastening points (1) and pull back in direction of arrow.

Unlock and disconnect associated plug connection, remove trim of light control unit (2).

Fig 1: Removing Light Control Unit Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

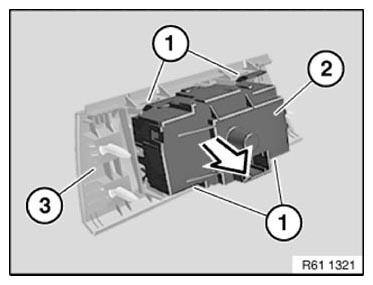

Unlock catches (1) and unclip light control unit (2) from trim (3).

Fig 2: Removing Light Control Unit From Trim

Courtesy of BMW OF NORTH AMERICA, INC.
