61 31 006 Removing and installing/replacing fixture for steering column stalk

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.
With steering wheel removed, do not under any circumstances turn/twist fixture for steering column stalk!

Necessary preliminary tasks:

Remove STEERING WHEEL
Remove TOP SECTION OF STEERING COLUMN CASING .
Remove LOWER SECTION OF STEERING COLUMN TRIM

Release screws (1).

Pull back fixture for steering column switch (2) in direction of arrow.

Disconnect plug connections behind and remove fixture for steering column stalk (2).

Installation:

Carry out STEERING ANGLE SENSOR ADJUSTMENT .

On vehicles with active front steering, steering angle sensor adjustment is performed by means of INITIAL OPERATION /adjustment of active front steering.

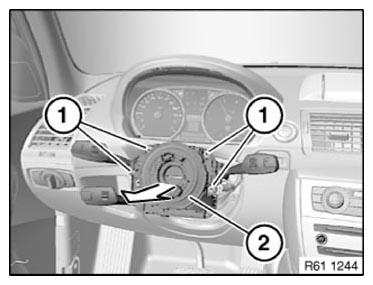

Fig 1: Removing Steering Angle Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove VOLUTE SPRING CASSETTE
Carry out VEHICLE PROGRAMMING/CODING
NOTE:
- If replacement of the steering column switch cluster is initiated via Progman, the steering column switch cluster is coded indirectly via the DSC control unit
- If coding is cancelled, first adjust the steering angle sensor; this makes a brand-new steering column switch cluster coding-compatible again if necessary
- Then code the DSC control unit again
Carry out STEERING ANGLE SENSOR ADJUSTMENT
NOTE:
- If steering angle sensor adjustment is cancelled, first code the DSC control unit
- Then adjust the steering angle sensor again
Vehicles with active front steering:
- Steering angle sensor adjustment is performed by means of INITIAL OPERATION/ADJUSTMENT of active front steering
- If necessary, proceed in accordance with instructions
