61 35 107 Removing and installing or replacing Junction Box electronics

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

NOTE: Glovebox removed for purposes of clarity.

Disconnect plug connection (1).

Release screws (2) and remove junction box electronics (3) from holder.

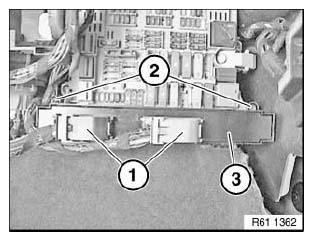

Fig 1: Identifying Junction Box Electronics, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Installation:

Make sure junction box electronics is correctly seated on plug connection (2) of holder.

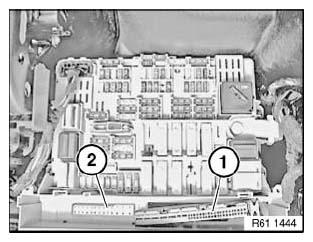

Fig 2: Identifying Junction Box Electronics Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING . Delete transport mode.
