System functions
The following system functions are described for RDC:
- Overall function
- RDC reset

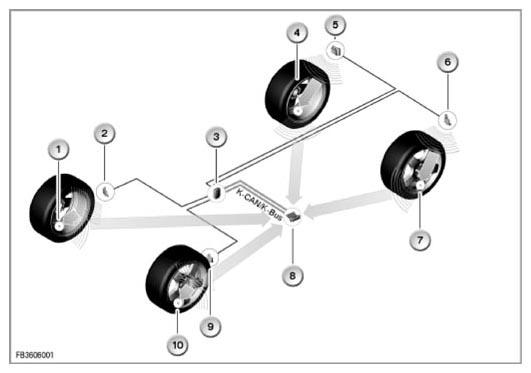

| Item | Explanation |
|---|---|
| 1 | Wheel electronics system, front right |
| 2 | RDC transmitter, front right |
| 3 | RDC control unit |
| 4 | Wheel electronics system, rear right |
| 5 | RDC transmitter, rear right |
| 6 | RDC transmitter, rear left |
| 7 | Wheel electronics system, rear left |
| 8 | RDC aerial |
| 9 | RDC transmitter, front left |
| 10 | Wheel electronics system, front left |
