Tire damage patterns

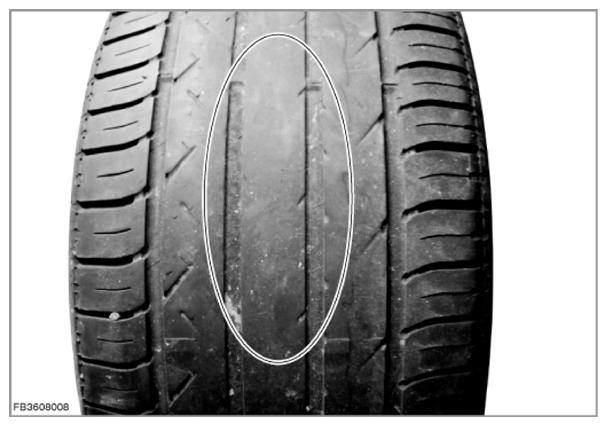

Centre wear

Fig 1: Tire Damage Patterns (Centre Wear)

Courtesy of BMW OF NORTH AMERICA, INC.

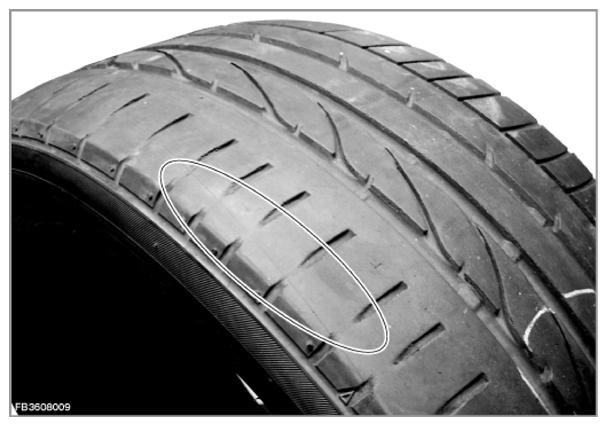

Inner or outer shoulder wear

Fig 2: Tire Damage Patterns (Inner/Outer Shoulder Wear)

Courtesy of BMW OF NORTH AMERICA, INC.

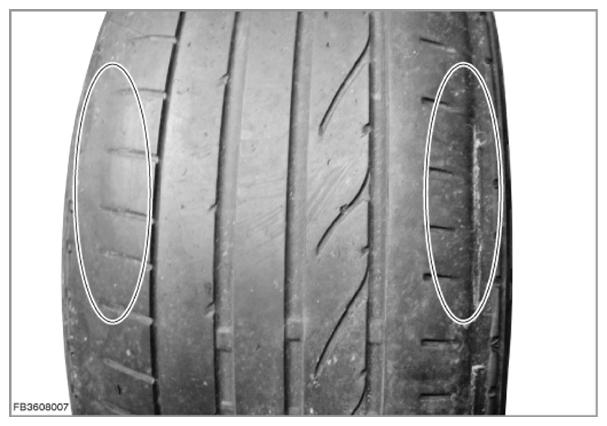

Shoulder wear on both sides

Fig 3: Tire Damage Patterns (Shoulder Wear)

Courtesy of BMW OF NORTH AMERICA, INC.

A worn outer shoulder has no legal consequences. The tire bed may not be damaged.

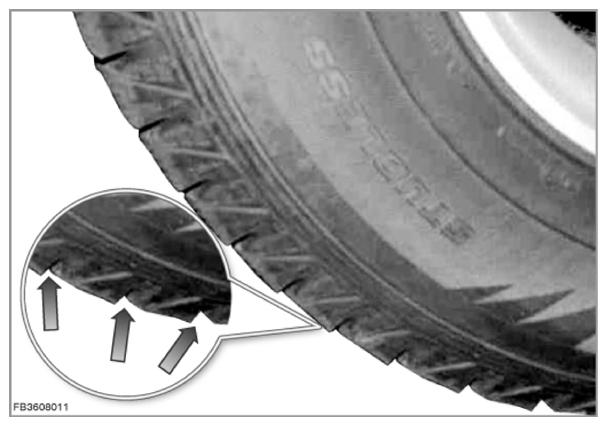

Saw-tooth formation

Fig 4: Locating Saw-Tooth Formation

Courtesy of BMW OF NORTH AMERICA, INC.

At the front tires of rear-drive vehicles, a saw-tooth-shaped wear can be partially seen. The individual blocks wear due to the slip which occurs when lifting up from the road surface due to the releasing of the inner tension. Saw-tooth-shaped wear can have an increased running noise as a result.

Different tread wear patterns form on the tires on the front and rear axles. In the interest of safety and optimal chassis conditions, an axle-wise wheel exchange is not to be recommended.
