11 65 Connection diagram, vacuum activation (N63)
11 65 Connection diagram, vacuum activation (N63)

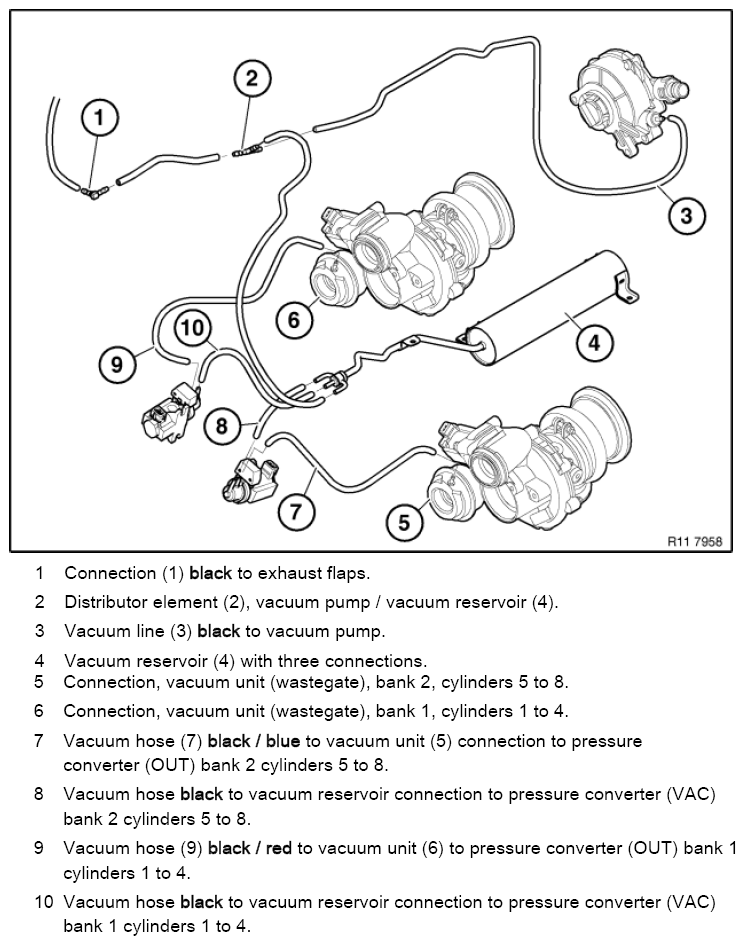

Fig 1: Vacuum Activation Connection Diagram
Courtesy of BMW OF NORTH AMERICA, INC.
