Collision - Body Panel Repair (F02H)
>>
Support Members
>>
51 11... Overview Of Front Bumper
51 11... Overview Of Front Bumper

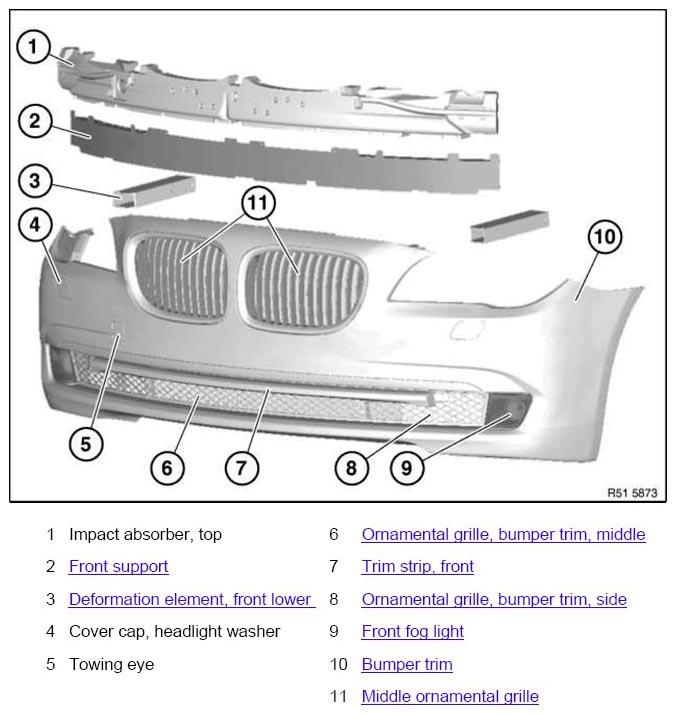

Fig 1: Overview Of Front Bumper
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
