41 00... Repair Solution For Straight Shank/Hexagon Rivet Nut

Protection measures!

Wear safety goggles
Wear protective gloves

IMPORTANT: To prevent the material from tapering, do not drill out the rivet head.

Carefully spot-drill rivet head with a larger drill bit/countersink

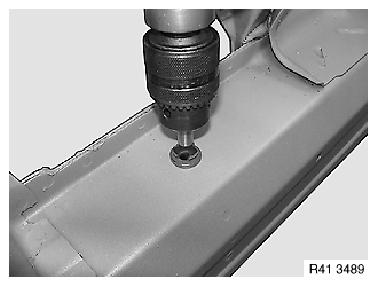

Fig 1: Drilling Rivet Head Using Larger Drill Bit/Countersink
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid paintwork damage
Knock rivet head away with a chisel

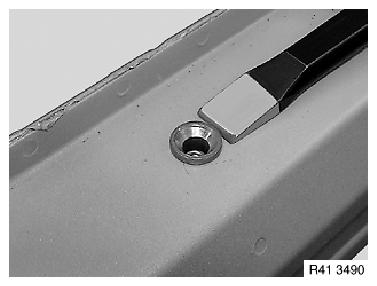

Fig 2: Knocking Rivet Head Using Chisel
Courtesy of BMW OF NORTH AMERICA, INC.
Drive through rivet shank into cavity, remove if necessary

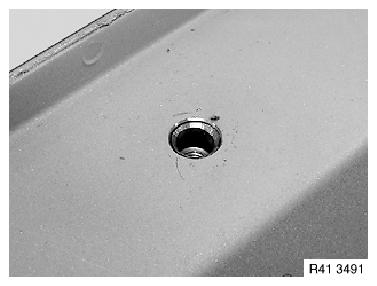

Fig 3: Identifying Rivet Shank
Courtesy of BMW OF NORTH AMERICA, INC.
Clean component, eliminate paintwork damage if necessary

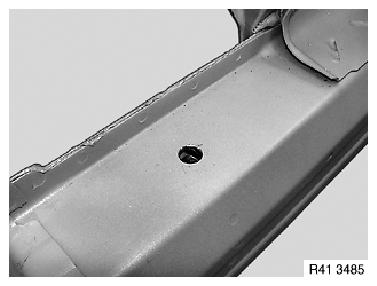

Fig 4: Identifying Drilled Bore
Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank can be removed:

IMPORTANT: To avoid corrosion, stop chips/dirt/debris by means of cavity sealing.

Follow INSTRUCTIONS ON CORROSION PROTECTION .
Preserving cavity

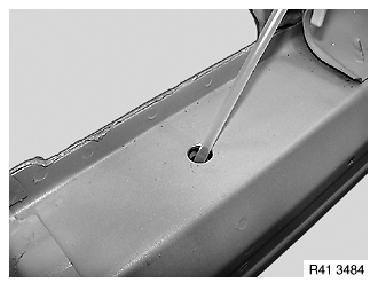

Fig 5: Preserving Cavity

G08510804

Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank cannot be removed:

WARNING: Risk of injury!

Observe NOTES ON CAVITY FOAM .

IMPORTANT: To avoid corrosion and rattling noises, stop chips/dirt/debris and rivet nut shank with cavity foam.

Remove foam remnants with isohexane (benzine).

Fig 6: Preserving Cavity

G08510805

Courtesy of BMW OF NORTH AMERICA, INC.

5. Stop rivet shank by means of specific foaming
6. Set rivet nut with hand rivet gun

NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.

Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

IMPORTANT: Follow manufacturer's operating instructions.

Make sure rivet nut correctly contacts component.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M8 thread.

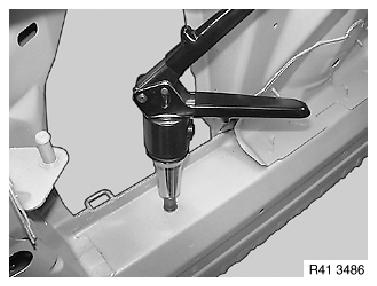

Fig 7: Setting Shank Rivet Nut Using Hand Rivet Gun

G08510806

Courtesy of BMW OF NORTH AMERICA, INC.

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512

IMPORTANT: Follow manufacturer's operating instructions.

Make sure rivet nut correctly contacts component.

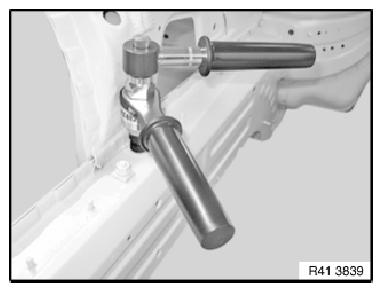

Fig 8: Installing Shank Rivet Nut Using Hand Rivet Gun

G08510807

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: According to the manufacturer, the pictured tool is suitable up to an M12 thread.
