Collision - Body Dimensions (F01, F02) (AWD)
>>
Body Dimensions
>>
41 00... Frame Alignment Control Body Dimensions
>>
Under Body View 1
Under Body View 1

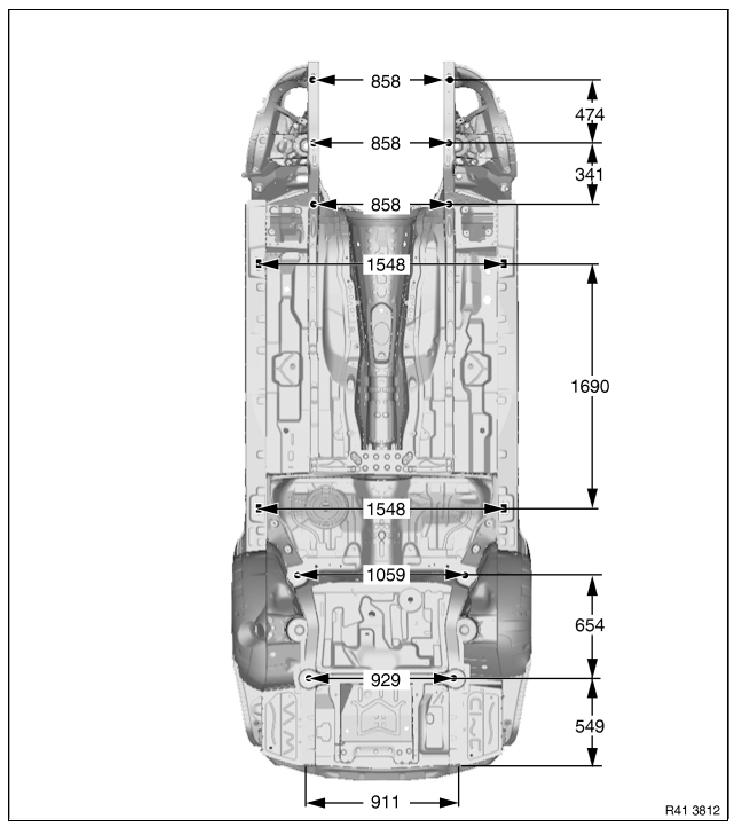

Fig 1: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 1)
Courtesy of BMW OF NORTH AMERICA, INC.
