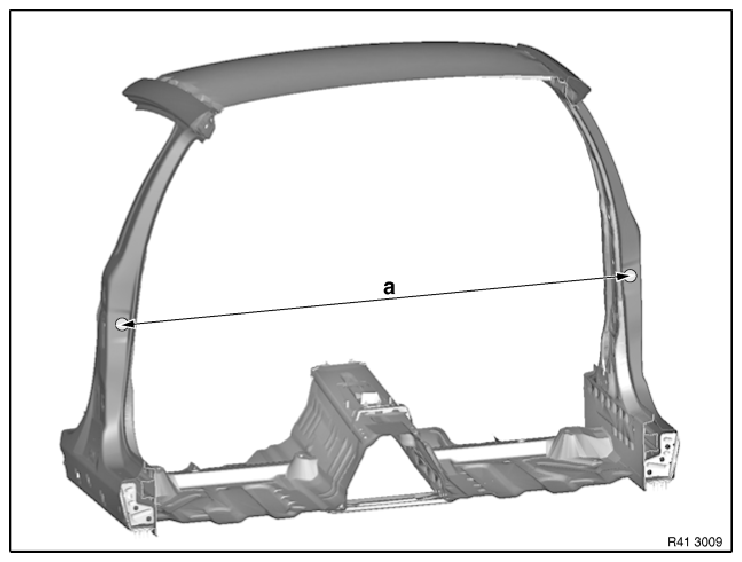

B-Pillar View

G08510747

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1634 mm between screw-on points of door brakes.
