00 00... Steering components: Check for play, damage, tightness: Notes

Checking play:

1. Check the tie rod backlash only in loaded condition or in the design position.
2. Checking with front axle raised:
   • To evaluate the play of the steering gear, it is necessary to pressurize the steering gear via its servo system!
   • The combustion engine must be running during hydraulically or electrically assisted steering for this purpose

Steering wheel:

Move steering wheel back and forth and check for play.

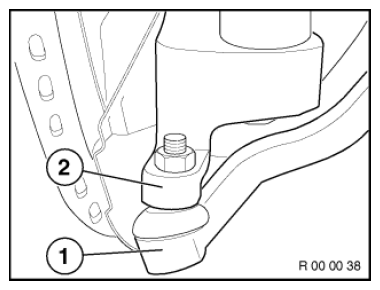

Track rod joint:

There must be no play between the track rod joint (1) and track-rod arm (2).

Check for damage:

Check gaiter, axle and gaiter for damage (e.g. cracks, holes) and leaks.

Check gaiter for missing tensioning straps.

Check for tightness (only for hydraulically supported steering):

Check all visible connections, hoses, lines and steering box for traces of fluid.

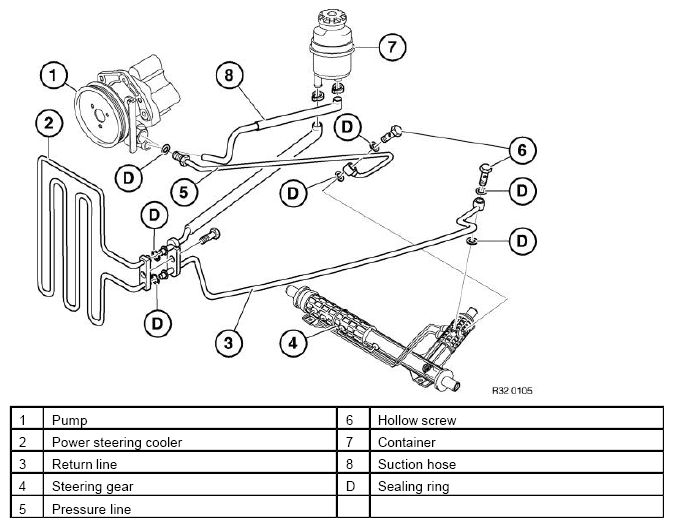

The following image shows the principal arrangement of the hydraulic steering components and lines.
