Procedure For Additional Vehicle Identification Number
- Cross through original vehicle identification number.
Remove ENGINE COMPARTMENT LID SEAL LOCATOR

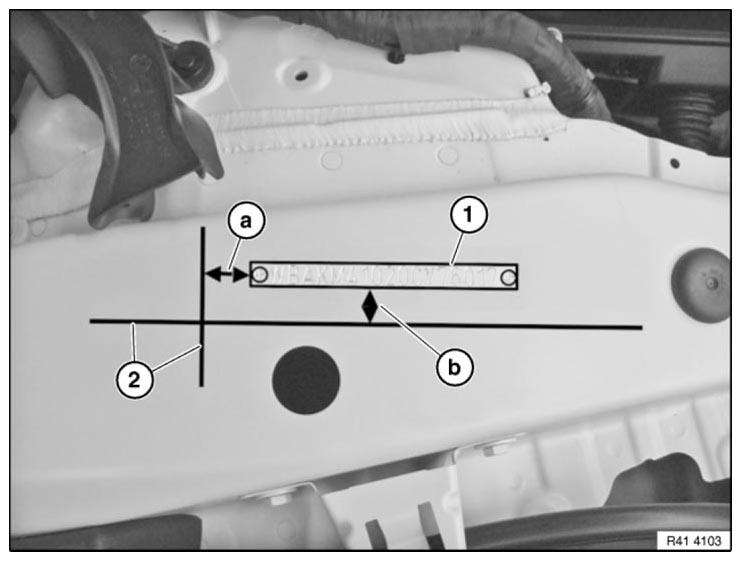

(1) = Original vehicle identification number (line 1).
Mark position lines (2) in accordance with specified dimensions/measurements.
Measurement a = 12 mm
Measurement b = 10 mm

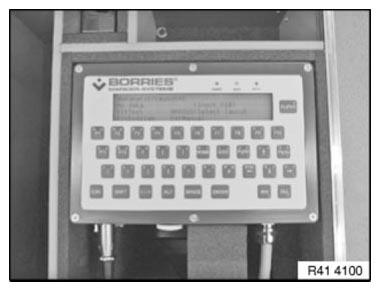

Display input:
- Select Layout 5 with arrow button.
- Enter vehicle identification number with F10.
- Press "ENTER" button.
NOTE:
With Layout 5 the vehicle identification number (line 1) is crossed through.
IMPORTANT:
Perform stamping operation with position lines
in advance on a test sheet.
Move suction feet of needle stamping unit to positions (1) and (2) shown.
- First adjust position (1)
- Then adjust position (2)
NOTE:
Make sure the unit is resting securely in position. If necessary, adjust the height and position of the suction feet.

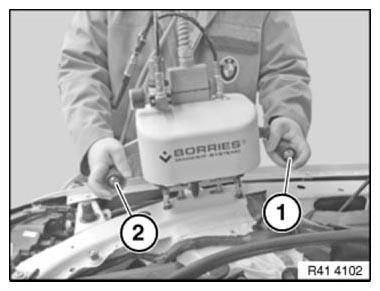

Press pushbutton (1) for vacuum pressure.
Then start stamping operation with pushbutton (2).
IMPORTANT:
After completing the stamping operation, do not
alter the position of the unit.
Do not switch off vacuum pressure.
Do not switch off vacuum pressure.
Stamping second vehicle identification number
Display input:
- Select Layout 2 with arrow button.
- Press "ENTER" button.
NOTE:
With Layout 2 the already entered vehicle identification number is stamped in line 2.
Start stamping operation with pushbutton (2).
After the stamping operation, if necessary adapt ENGINE COMPARTMENT LID SEAL LOCATOR of second vehicle identification number.
The following layout functions are available:
VEHICLE IDENTIFICATION NUMBER CHART
| Layout selection | Vehicle identification number |
|---|---|
| Layout 1 | In line 1 |
| Layout 2 | In line 2 |
| Layout 3 | Turned through 180° in line 1 |
| Layout 4 | Turned through 180° in line 2 |
| Layout 5 | Cross through in line 1 |
| Layout 6 | Cross through in line 2 |
