86 10... Replacing lashing plate and lashing eye: Installation

Tightening torque, 86 10 3AZ

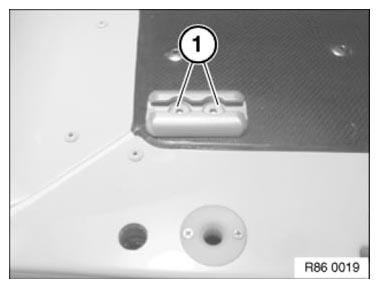

Fig 1: Identifying Countersunk Head Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Locking lashing eye

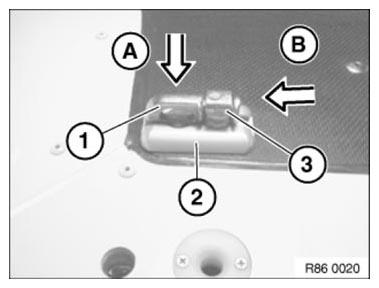

Position lashing eye (1) on circular openings on lashing plate (2). Press lashing eye (1) in direction of arrow A into lashing plate (2). In this position, slide lashing eye (1) in direction of arrow B.

Spring bar (3) snaps in, anchors and secures lashing eye (1) in lashing plate (2).

Fig 2: Sliding Lashing Eye

Courtesy of BMW OF NORTH AMERICA, INC.
