86 10... Replacing gaiter: Installation

Tightening Torque, 86 10 15AZ

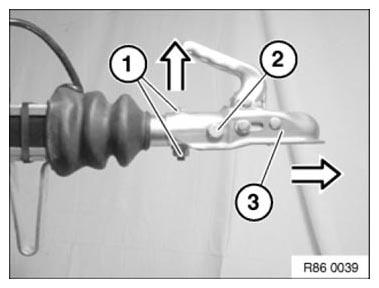

Fig 1: Pulling Off Towing Attachment
G06886858Courtesy of BMW OF NORTH AMERICA, INC.

Pull off gaiter (1) in direction of arrow.

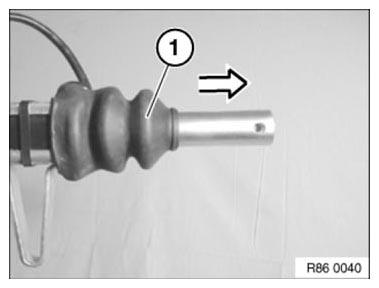

Fig 2: Pulling Off Gaiter
G06886859Courtesy of BMW OF NORTH AMERICA, INC.
