86 10... Disassembly of loading ramp frame/disassembly of rail, left/right: Installation

Tightening Torque,

86 10 7AZ

Fig 1: Identifying Loading Ramp Frame Screws On Cross-Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1, 2) on left and right sides of loading ramp frame (3).

Use new self-locking nuts.

Tightening Torque, 86 10 8AZ

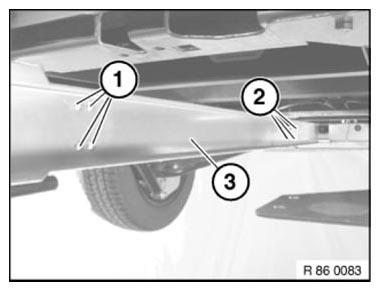

Fig 1: Identifying Loading Ramp Frame With Screws On Left And Right Sides

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1, 2, 3).

Use new self-locking nuts.

Tightening Torque, 86 10 9AZ

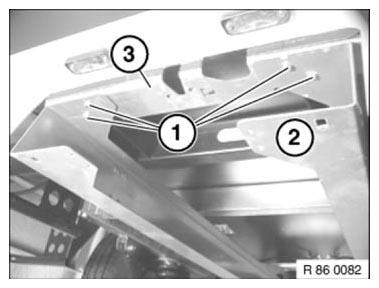

Fig 1: Identifying Loading Ramp Frame Screws

Courtesy of BMW OF NORTH AMERICA, INC.
