61 13... Cutting off, stripping insulation and cutting optical fibres to length: Notes

To cut off, strip insulation and cut optical fibres to length, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) 61 4 320 from crimping set.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

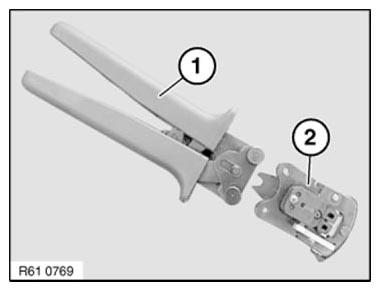

Fig 1: Identifying Hand Pliers With Crimping Head (61 4 320)
G06894958Courtesy of BMW OF NORTH AMERICA, INC.
