Functional description
When the first purge air line is being checked, the second is closed using the shutoff valve.
The amount of fuel vapour drawn in by the combustion engine from the activated carbon canister must be adapted to each operating condition of the engine. The tank vent shutoff valve is activated by the engine control.

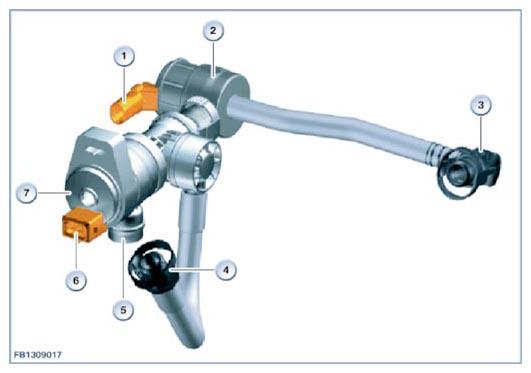

Fig 1: Identifying Tank Vent Shutoff Valve, Two-Pin Plug Connection, Throttle Body Connection, Suction Jet Pump Connection
| Index | Explanation |
|---|---|
| 1 | two-pin plug connection |
| 2 | Tank vent shutoff valve |
| 3 | Connection to throttle body |
| 4 | Connection to suction jet pump |
| 5 | Connection to activated carbon canister |
| 6 | two-pin plug connection |
| 7 | Tank vent valve |
