Activation and setpoint values
Only the two conditions, open and closed, occur while driving. Control of the exhaust flap is governed by:
- Load
- Gear engaged
- Rotational speed

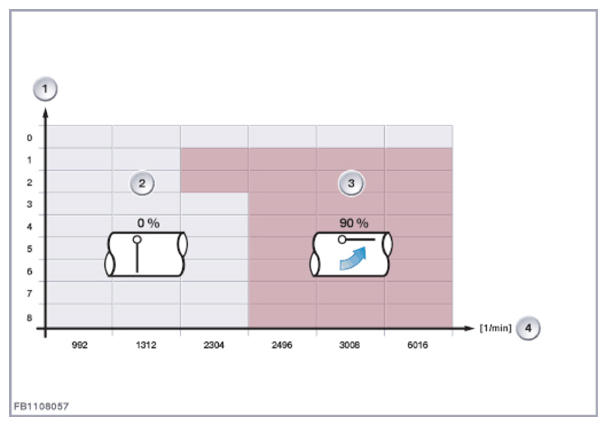

Example:
| Item | Explanation |
|---|---|
| 1 | Gear engaged |
| 2 | Exhaust flap, closed |
| 3 | Exhaust flap, open |
| 4 | Data point for engine speed |
Observe the following setpoint values for the electric changeover valve of the exhaust flap:
| Variable | Value |
|---|---|
| Voltage range | 9 to 16 volts |
| Power consumption | 1 A |
| Temperature range | -30°C to 140°C |
