61 31 084 Removing and installing/replacing switch for automatic tailgate activation

Special tools required:

Removal:

Lever switch for automatic operation of tailgate (1) out of tailgate trim panel (2) with special tool 00 9 325 .

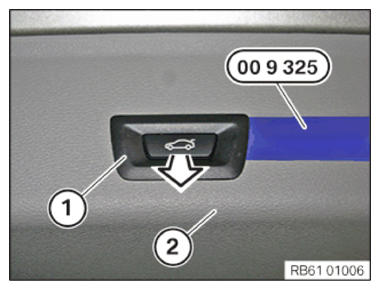

Fig 1: Removing Tailgate Trim Panel With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) on switch for automatic operation of tailgate (2) and disconnect.

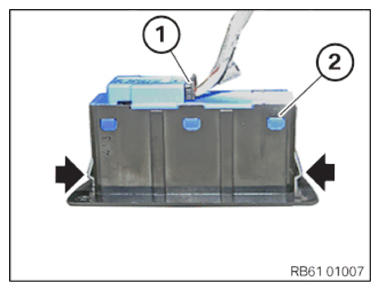

Fig 2: Locating Connector On Tailgate Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Retaining clips on switch for automatic operation of tailgate (2) must not be missing or damaged.

Connect connector (1) to switch for automatic operation of tailgate (2).

Fig 3: Locating Connector On Tailgate Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Insert switch for automatic operation of tailgate (1) into tailgate trim panel (2).

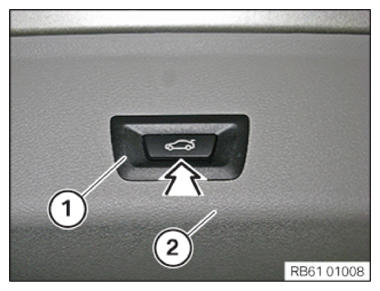

Fig 4: Inserting Switch For Automatic Operation Of Tailgate Into Tailgate Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
