33 00... Rear Axle: Wheel Alignment Check Must Be Carried Out After The Following Work (528i, 535i, 535d, 550i)

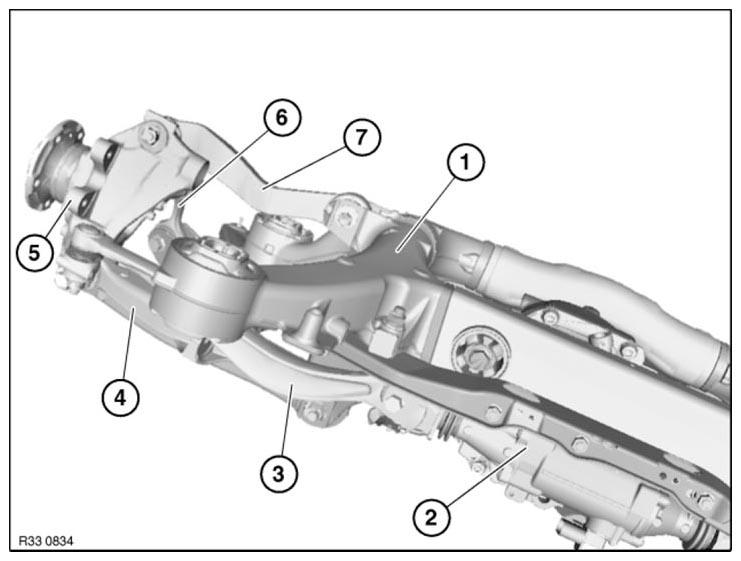

Fig 1: Swinging, Guide Arm, HSR Actuator, Wishbone And Wheel Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Graphic F01/F02.

A WHEEL ALIGNMENT CHECK  must be carried out after the following work:

• Release the following screw connection:
  • Swinging arm, front/rear, to rear axle support.
  • Swinging arm to integral link/wheel carrier.
  • Guide arm to rear axle support/HSR unit.
  • Wishbone to rear axle support/wheel carrier.
• Replacement of following parts:
  1. Rear axle support.
  2. HSR actuator.
  3. Toe arm.
  4. Swinging arm.
  5. Wheel carrier.
  6. Integral link.
  7. Wishbone.
