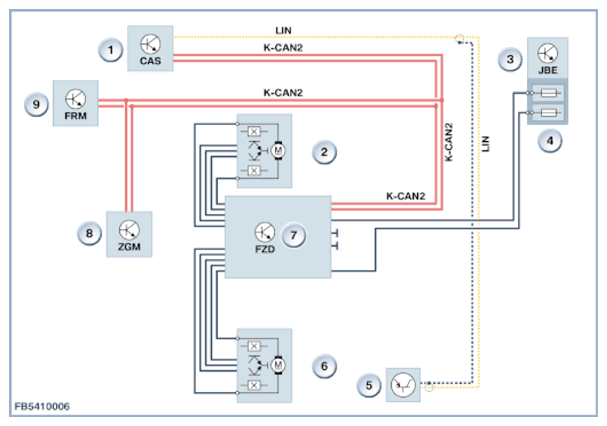

System overview
| Index | Explanation |
|---|---|
| 1 | Car access system (CAS) |
| 2 | Glass slide/tilt sunroof panel drive motor |
| 3 | Junction Box Electronics (JBE) |
| 4 | Front fuse and relay module |
| 5 | Remote control receiver in the aerial diversity module |
| 6 | Sliding visor motor |
| 7 | Roof function center (FZD) |
| 8 | Central gateway module (ZGM) |
| 9 | Footwell module (FRM) |
