13 54-pin plug connection

Structure and inner electrical connection

The Body Domain Controller (BDC) is connected to the vehicle with 10 plug connections.

To avoid confusion during connection, connector housings of the same color have different encoding. This prevents them being inserted in the wrong position inadvertently.

The input for the voltage supply of the Body Domain Controller (BDC) is a 1-pin plug connection.

Dependent on the series, in the fuse block of the Body Domain Controller (BDC) are installed e.g. fuses for the following consumers:

Central locking drive
Outside door handle electronics
Air conditioning, DSC, OBD
Powertrain of the power window regulators
Light operating facility, operating facility for the assist systems and steering column switch cluster
Left headlight driver module and right headlight driver module
Rain-light-solar-condensation sensor
Wipers
Fanfare

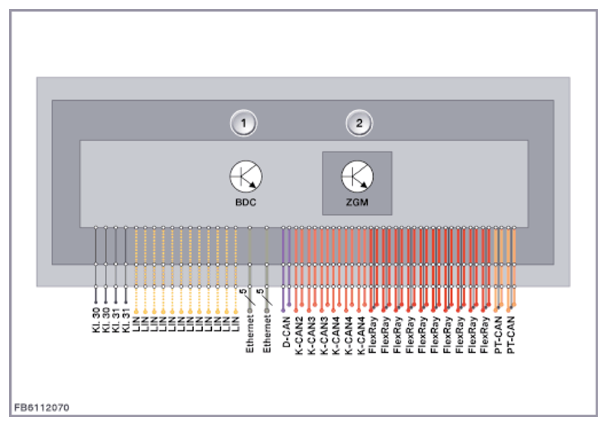

Fig 1: Body Domain Controller - Circuit Diagram
Courtesy of BMW OF NORTH AMERICA, INC.

Maximum equipment

Item	Explanation
1	Body Domain Controller
2	Central gateway module (ZGM = virtual control unit)

Pin assignments

The graphic above shows only the supply and bus connection. The current pin assignment is recorded on the wiring diagrams in the ISTA diagnosis system (Integrated Service Technical Application). Click on the component code in the wiring diagram to activate the "Installation location" and "Pin assignment" tabs.
