41 00... Use Of Materials In Outer Skin

The following illustration is a schematic diagram of all the body variants.

Apply this illustration to the relevant vehicle.

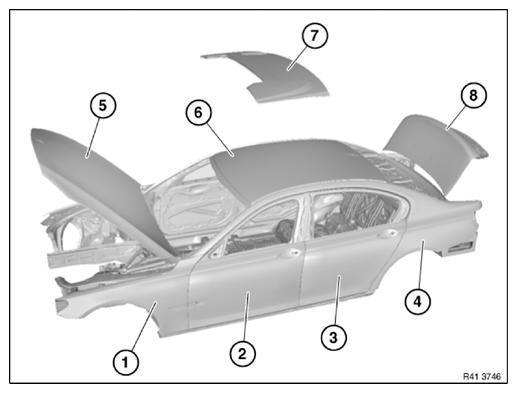

Fig 1: Identifying Materials In Outer Skin (Body Variant)

G09915847

Courtesy of BMW OF NORTH AMERICA, INC.

Component	Vehicle	Material
(1) Side wall, front	F01, F02, F04, F10, F11, F18, F80, F82, F83	Aluminum
	F06, F12, F13, F15, F16	Plastic
	F20, F21, F22, F23, F25, F26, F30, F31, F32, F33, F34, F35, F36	Steel
(2) Door, front	F01, F02, F04, F06, F07, F10, F11, F12, F13, F18	Aluminum
(2) Door, front	F20, F21, F22, F23, F25, F26, F30, F31, F32, F33, F34, F35, F36, F80, F82, F83	Steel
(3) Door, rear	F01, F02, F04, F06, F07, F10, F11, F18	Aluminum
(3) Door, rear	F20, F25, F26, F30, F31, F34, F35, F36	Steel
(5) Engine compartment lid	F01, F02, F04, F06, F07, F10, F11, F12, F13, F15, F16, F18, F80, F82, F83	Aluminum
(5) Engine compartment lid	F20, F21, F22, F23, F25, F26, F30, F31, F32, F33, F34, F35, F36	Steel
(6) Hardtop/roof	F01, F02, F04	Aluminum
	F06, F07, F10, F11, F13, F15, F16, F18, F20, F21, F22, F25, F26, F30, F31, F32, F33, F34, F35, F36	Steel
	F82	Carbon
(7) Soft top compartment lid	F12	Plastic
(7) Soft top compartment lid	F23, F33	Steel
(8) Tailgate	F07	Aluminum
	F06, F12, F13, F82	Plastic
	F01, F02, F04, F10, F11, F15, F16, F18, F20, F21, F22, F23, F25, F26, F30, F31, F32, F33, F34, F35, F36, F80	Steel
