00 Safety information for working on vehicles with automatic engine start-stop function (MSA)

Observe safety precautions when working on MSA vehicles.

Before carrying out practical work on the engine, always ensure that the MSA functionality is deactivated so as to prevent automatic engine starting while work is being carried out in the engine compartment.

MSA function is deactivated by:

• Deactivate MSA by means of button (1) in passenger compartment
• Open seat belt buckle and driver's door
  Fig 1: Identifying MSA Button

  Courtesy of BMW OF NORTH AMERICA, INC.
• Open engine bonnet/hood and ensure that engine hood/bonnet contact is not in workshop mode
  • Workshop mode

    A = 10 mm

  • Basic setting (engine hood/bonnet open)

    B = 7 mm

To make sure that the engine hood/bonnet contact is at the basic setting, if necessary press the hood/bonnet contact up to the limit position before starting work and slowly release.

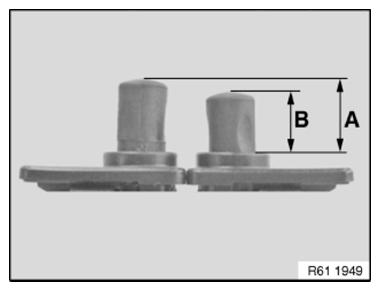

Fig 2: Identifying Engine Hood/Bonnet Contact Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
