72 12... Overview of airbag modules, airbag control unit, belt tensioners

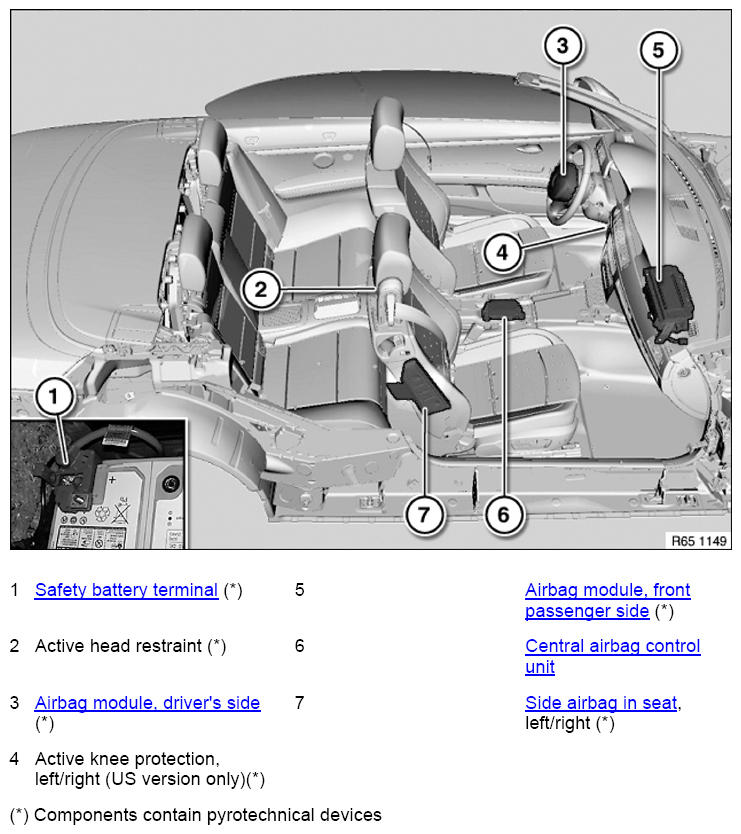

Fig 1: Overview Of Airbag Modules, Control Unit And Belt Tensioners

G09864298

Courtesy of BMW OF NORTH AMERICA, INC.
