84 31 020 Removing And Installing/Replacing Hands-Free System Speaker
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks
- Remove TRIM FOR PEDAL ASSEMBLY

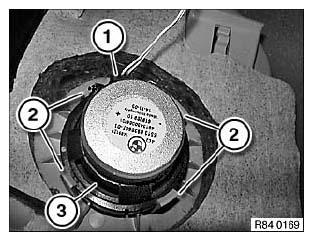

Disconnect plug connection (1).
If necessary, release cable tie from catches (2).
Unlock catches (2) and remove speaker (3) from mounting.
Installation:
Catches (2) must not be damaged.
Guide lugs of mounting must be seated in grooves of speaker (3).
Speaker (3) must snap audibly into place in mounting.
