84 21 535 Removing And Installing/Replacing Hands-Free Charging Electronics

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks

Clamp off BATTERY NEGATIVE LEAD
Remove LUGGAGE COMPARTMENT FLOOR TRIM

E91:

Release retaining clips (1) and remove storage pan (2).

Fold panel (3) upwards.

Fig 1: Storage Tray, Mounting Clips And Panel

Courtesy of BMW OF NORTH AMERICA, INC.

E88/E84/E93:

Unscrew nuts (1).

Remove holder for telematics control unit/SES (2) in direction of arrow from body.

Raise panel for luggage compartment partition (4) slightly and feed out holder for telematics control unit/SES (2) in direction of luggage compartment.

Release wiring harness fastener (3) from holder for telematics control unit/SES (2).

Fig 2: Removing Holder For Telematics Control Unit/SES

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (5) are correctly seated in associated body holders.

Make sure wiring harness is correctly laid.

Unscrew nuts (1).

Remove charging hands-free electronics and disconnect associated plug connections.

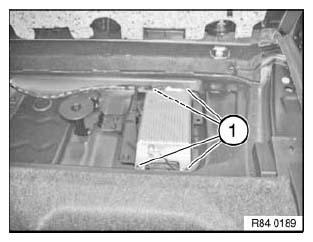

Fig 3: Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING
If necessary, log mobile phone on to vehicle
