61 31 137 Removing and installing/renewing USB interface connecting socket (version 2)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SWITCH FOR FRONT PASSENGER AIRBAG DEACTIVATION

NOTE: Open glove box

Disconnect plug connection (1).

Unlock retaining clips (2) on left/right.

Press out USB interface connecting socket (3) in direction of arrow.

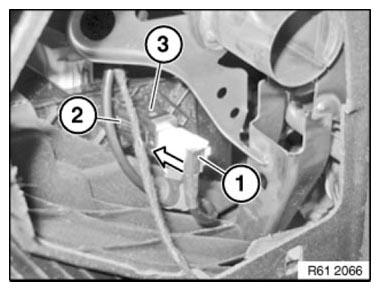

Fig 1: Pressing Out USB Interface Connecting Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips (2) must not be damaged.

Make sure USB interface connecting socket (3) is correctly seated.
