61 35 683 Replacing optics for solar rain/light sensor (up to 03/2009)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove RAIN/LIGHT SOLAR SENSOR

Carefully unlock catches (1) of solar rain/light sensor (2).

Remove optical element for solar rain/light sensor (3).

Installation:

Detach protective cover from new optical element for solar rain/light sensor.

Catches (1) of solar rain/light sensor (2) must not be damaged or missing.

Observe laser marking (4) of fitting aid.

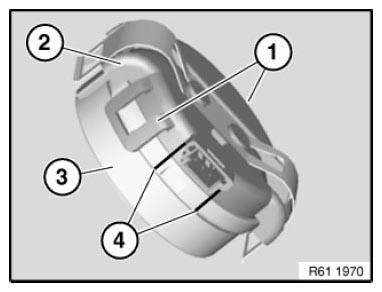

Fig 1: Identifying Solar Rain/Light Sensor, Catches And Laser Marking

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Encoding is automatically performed by JBBFE .

Carry out INITIALIZATION to calibrate the rain sensor to the windscreen.
