84 11 519 Removing and installing or replacing eject box

Special tools required:

• 00 9 340

Necessary preliminary tasks

• Remove SIDE CARPET ON STORAGE COMPARTMENT (center console) on right.

Open storage compartment (center console) and swing top section of eject box mounting (2) upwards.

Release screws (1).

Fig 1: Identifying Eject Box Mounting With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Expose plug connections (1) and disconnect.

Expand retaining clips (2) and remove wiring harness (3).

Lift out eject box mounting, feeding wiring harness (3) in direction of arrow out of center console (4).

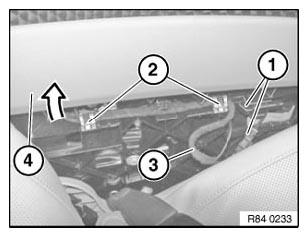

Fig 2: Lifting Out Eject Box Mounting, Feeding Wiring Harness Out Of Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove rubber buffers (1) and release screws underneath.

Unfasten screws (2).

Fig 3: Identifying Rubber Buffers And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Position retaining plate (1) vertically.

Slide lower section (2) with a suitable tool in direction of arrow and remove from upper section (3).

Fig 4: Sliding Retaining Plate Lower Section Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove fitting sleeve (2) in direction of arrow.

Feed out wiring harness (3).

Fig 5: Removing Fitting Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Lever eject box (1), using special tool 00 9 340 , sideways out of eject box mounting.

Feed associated wiring harness out of eject box mounting and remove eject box (1).

Fig 6: Removing Eject Box Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure wiring harness (1) is laid correctly.

Fig 7: Identifying Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Spring (1) must be inserted exactly in guide (2) of eject box upper section mounting (3).

Fig 8: Identifying Spring Inserted In Guide Of Eject Box Upper Section Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) must be positioned in associated guides (2).

Make sure release mechanism (3) is correctly seated.

Fig 9: Identifying Retaining Lugs, Associated Guides And Release Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
