32 41... Replacing level switch for Dynamic Drive fluid reservoir

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew nuts.

Remove shims.

Installation:

Replace self-locking nuts.

Tightening torque 32 41 1AZ .

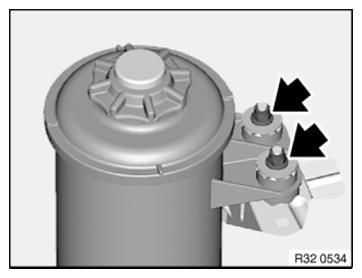

Fig 1: Locating Self-Locking Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Raise and/or turn fluid reservoir in order to gain better access to plug connection.

Disconnect plug connection (1).

Turn level switch (2) through approx. 45° and remove towards bottom.

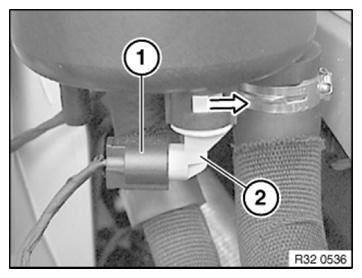

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
