33 00... Rear axle: wheel/chassis alignment check must be carried out after the following work
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

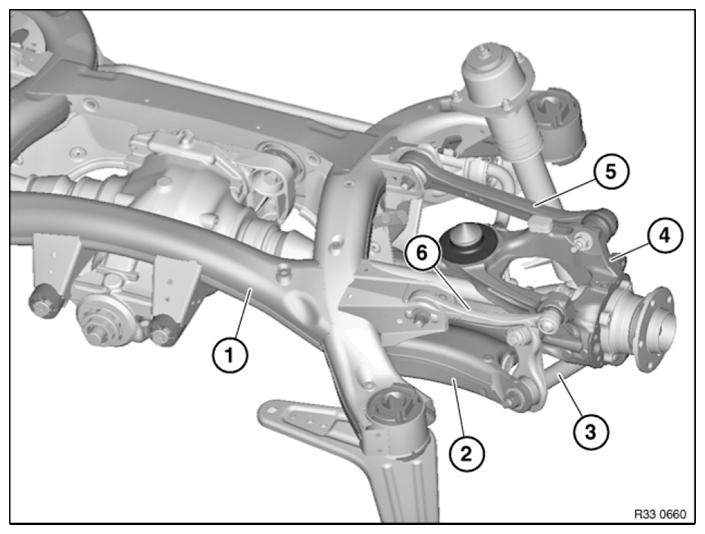

Fig 1: Identifying Rear Axle Support, Swinging Arm, Integral Link, Wheel Carrier / Ball Joint, Wishbone And Guide Arm
Perform wheel/chassis alignment check . See 32 00 150 KDS WHEEL ALIGNMENT WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD must be carried out after the following work:
- Release of following screw/bolt connections:
- Swinging arm, front/rear, to rear axle carrier
- Swinging arm to integral link / wheel carrier
- Integral link to wheel carrier
- Guide arm to rear axle support
- Wishbone to rear axle support
- Replacement of following parts:
- Rear axle support
- Swinging arm
- Integral link
- Wheel carrier / ball joint
- Wishbone
- Guide arm
