Symmetrical axis 2

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Center line running through front and rear axles.

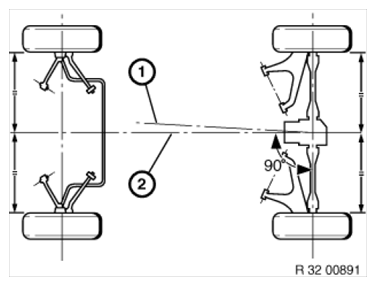

Fig 1: Identifying Geometrical Driving Axis And Symmetrical Axis
G06889631Courtesy of BMW OF NORTH AMERICA, INC.
