31 33... Measuring vehicle ride height

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

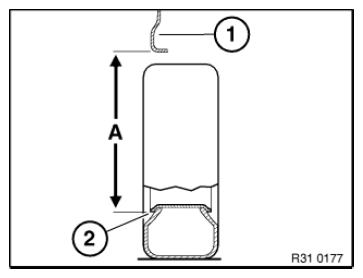

Determine actual ride height (A) to do so, attach tape measure to rim flange (2) at bottom middle and measure to wheel arch lower edge (1).

Fig 1: Identifying Vehicle Ride Height
G08484337Courtesy of BMW OF NORTH AMERICA, INC.
