61 31 035 Removing and installing/replacing switch for steering column adjustment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove lower section of steering column trim . See 32 31 020 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING COLUMN TRIM .

Unclip steering column adjustment switch (1) in direction of arrow.

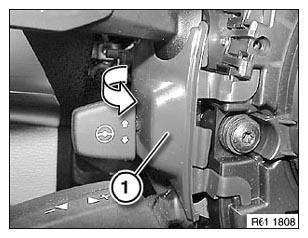

Fig 1: Identifying Steering Column Adjustment Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

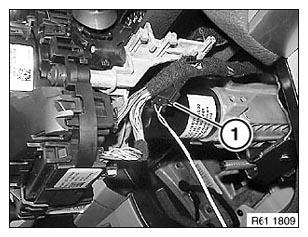

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
