61 31 198 Replace controller chrome ring

Special tools required:

• 00 9 340

Lever out "OPTION", "BACK", "MENU" buttons with special tool 00 9 340 .

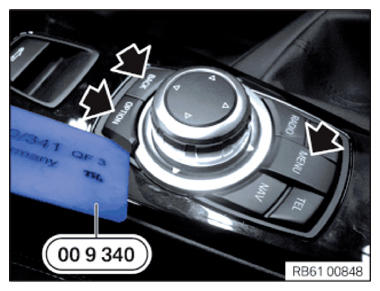

Fig 1: Identifying Special Tool And Buttons

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out chrome ring (1) from latch mechanisms with special tool 00 9 340 and remove upwards.

Installation note:

Retaining lugs on controller must not be damaged.

Fig 2: Removing Chrome Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the controller.
