36 11 105 Removing and installing (replacing) RDC (Tire Pressure Control) control unit

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

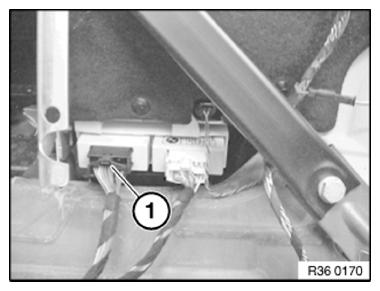

Disconnect plug connection (1).

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

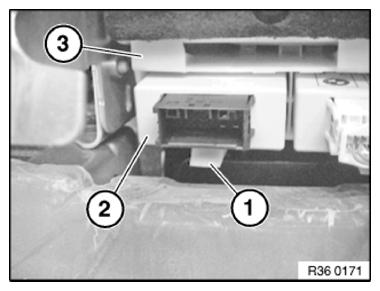

Unlock catch (1) and remove control unit for RDC (2) from device carrier (3).

Fig 2: Identifying Catch, Carrier And Control Unit For RDC

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement
