61 11... Installing repair cable for reversing camera
Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .
NOTE:
Work is shown by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.
Remove trim panels.

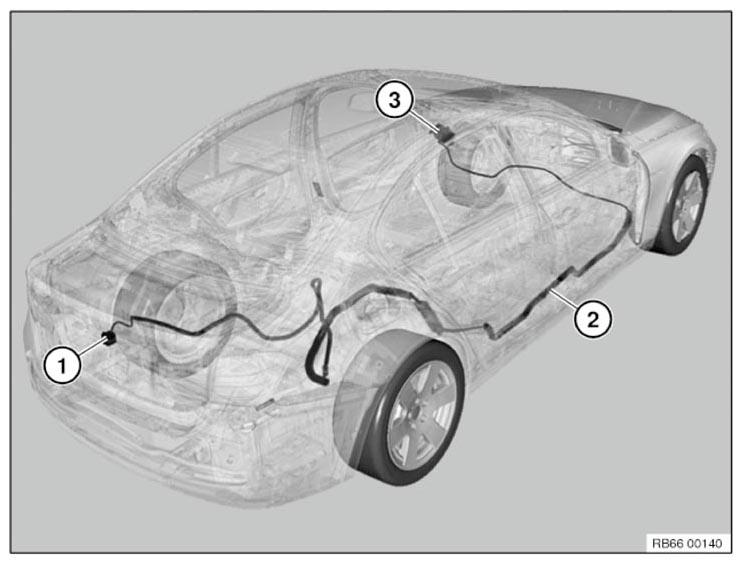

Lay repair cable from reversing camera (1) along wiring harness (2) up to TRSVC control unit (3, middle slot) and secure sufficiently.
Lay any repair cable overlength under carpet.
After successful completion of function check, detach start and end of faulty cable at first mounting point.
