61 12... Removing and installing/replacing positive battery cable at partition seal (engine compartment)

WARNING: Observe SAFETY INFORMATIONS for handling vehicle battery.

Necessary preliminary tasks:

NOTE: Graphics shown on the F20 by way of example, deviations in detail are possible in other models.

Turn locks (1) 90° counterclockwise.

Unlock catch (3).

Remove cover (2).

Fig 1: Identifying Locks, Catch And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque: 61 21 4AZ .

Slacken nut (2).

Tightening torque: 61 21 4AZ .

Remove positive battery cable (3).

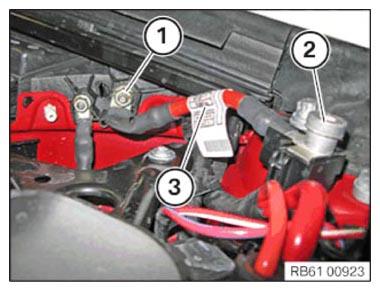

Fig 2: Identifying Slacken Nut And Positive Battery Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Check that the positive battery cable subsurface (1) is correctly positioned.

Positive battery cable subsurface (1) must face away from partition seal as shown.

In case of incorrect installation position:

Release nut (2) and correct installation position of positive battery cable subsurface (1).

Tightening torque: 61 21 7AZ .

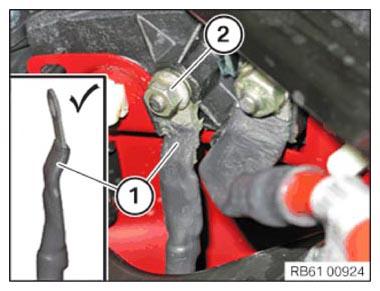

Fig 3: Identifying Positive Battery Cable Subsurface And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat positive battery cables (1) at partition seal with contact protection grease.

(Contact protection grease BMW part number 83 19 2 295 229.)

Use a standard flat brush with a width of approx. 2.5 cm to apply the grease.

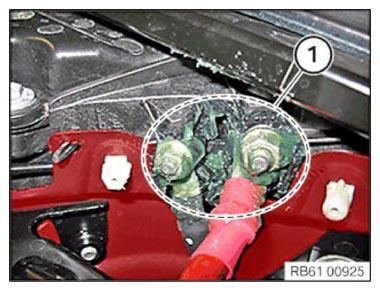

Fig 4: Identifying Positive Battery Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1).

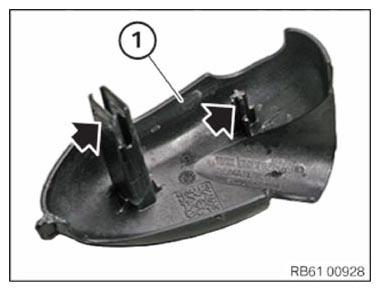

Fig 5: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guide and retaining lugs on cover (1) must not be damaged or missing.

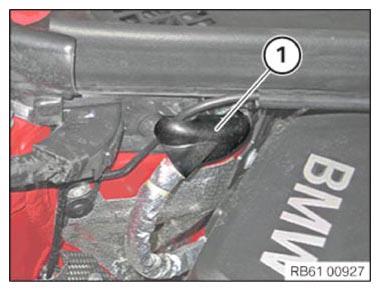

Fig 6: Locating Guide And Retaining Lugs On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat positive battery cables (1) at partition seal with contact protection grease.

(Contact protection grease BMW part number 83 19 2 295 229.)

Use a standard flat brush with a width of approx. 2.5 cm to apply the grease.

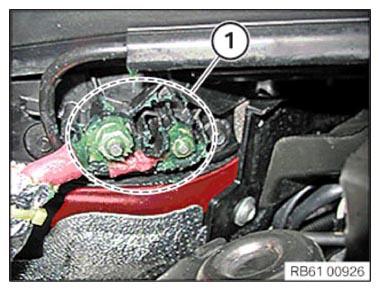

Fig 7: Identifying Positive Battery Cables

Courtesy of BMW OF NORTH AMERICA, INC.
