Power Steering Vane Pump (4WD): Assembly

WARNING: This page does not describe the selected car, but rather 48 other vehicles, including the 2006 BMW M3, 2006 BMW 330xi, 2006 BMW 330Ci, 2006 BMW 325xi, and 2006 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.

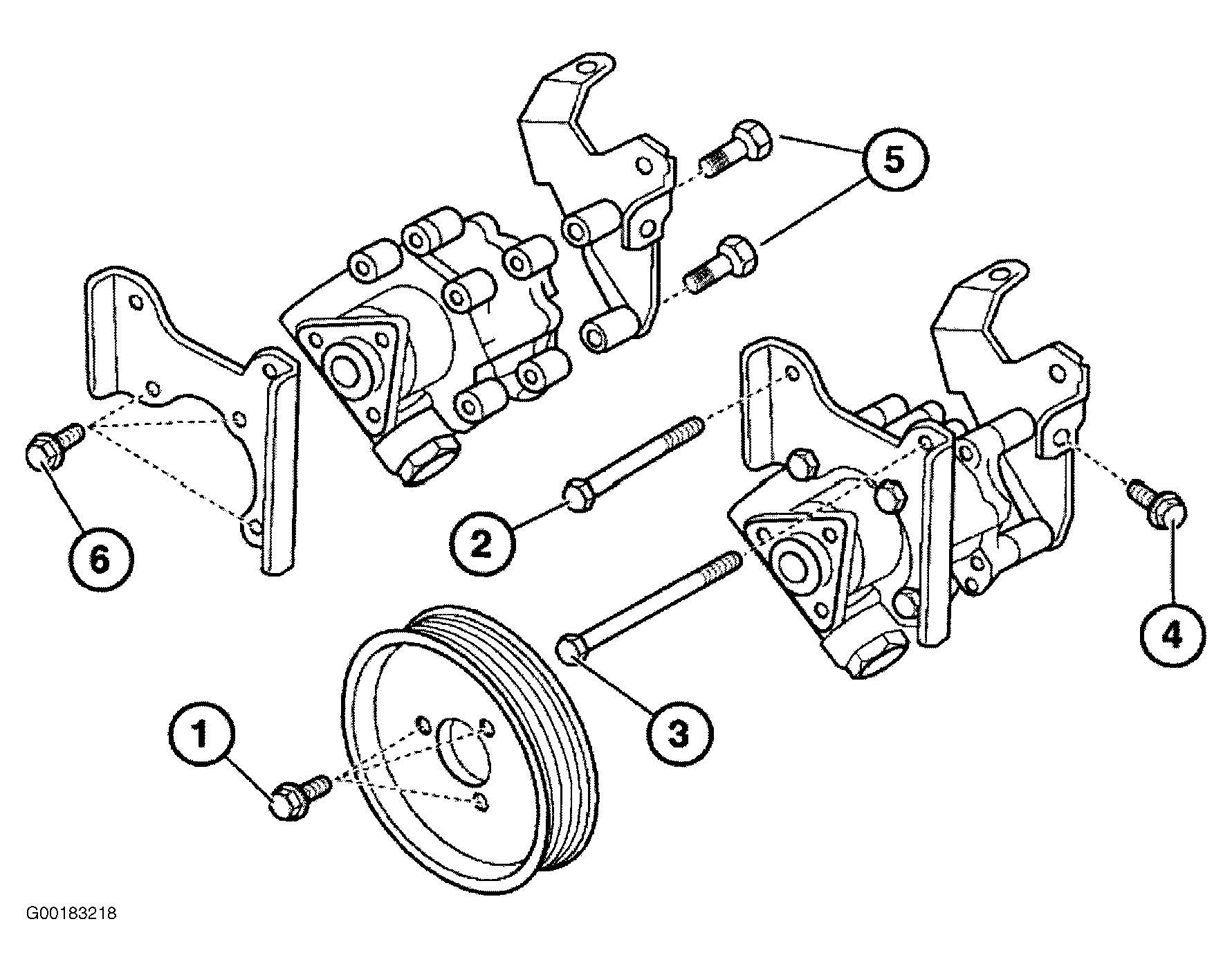

  1. To assemble, reverse disassembly procedure. Note different length screws. Screw (3) is 8 x 100 mm. See Figure.
  2. Ensure lettering on belt pulley points forward.
  3. Tighten pressure and suction lines to specification. See TORQUE SPECIFICATIONS .
  4. Fill hydraulic system. See BLEEDING POWER STEERING SYSTEM  under LUBRICATION.
