41 61... Check Hinge For Engine Compartment Lid
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove hinge for engine compartment lid. See LEFT HINGE FOR ENGINE COMPARTMENT LID (UP TO 09/2011) or HINGE FOR ENGINE COMPARTMENT LID (FROM 09/2011) .

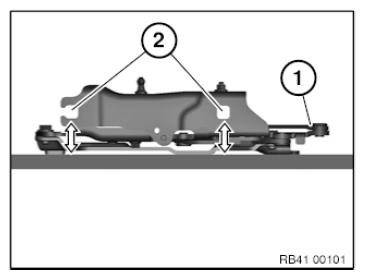

Open and close hinge (1).
Place hinge (1) on a level surface. Check holes (2) for parallelism with surface.
| Test result | Solution |
|---|---|
| Hinge is stiff | Replace hinge |
| Lack of parallelism | Replace hinge |
