61 31 544 Replacing roof switch cluster (roof function center)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Only new parts may be used for replacement (repair kit)*.
*Sourcing reference: BMW Parts Catalogue

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work

Remove ROOF SWITCH CLUSTER .

Secure switch unit (1) to cover (2).

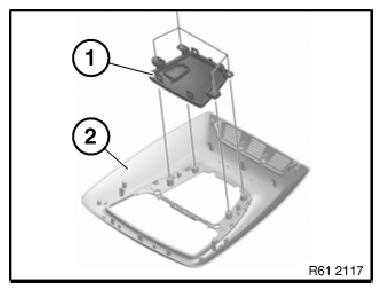

Fig 1: Identifying Roof Switch Unit And Cover

G08513762

Courtesy of BMW OF NORTH AMERICA, INC.

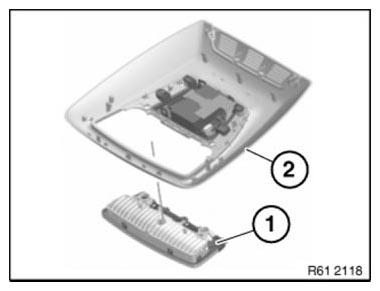

Clip light unit (1) into cover (2).

Fig 2: Identifying Light Unit And Cover

G06895068

Courtesy of BMW OF NORTH AMERICA, INC.

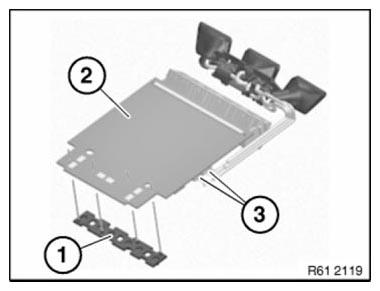

Insert retaining lugs on switching mat (1) correctly into designated guides on board (2).

Connect USIS sensor plug connections (3) to board (2).

NOTE: USIS sensors (3) are used only when anti-theft alarm system is fitted.

Fig 3: Identifying Switching Mat, USIS Sensor Plug Connections And Board

G06895069

Courtesy of BMW OF NORTH AMERICA, INC.

Insert USIS sensors (1) in direction of arrow into frame (2).

NOTE: USIS sensors (1) are used only when anti-theft alarm system is fitted.

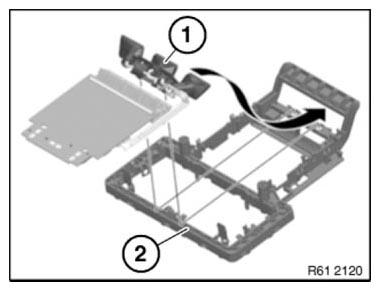

Fig 4: Inserting USIS Sensors Into Frame

G06895070

Courtesy of BMW OF NORTH AMERICA, INC.

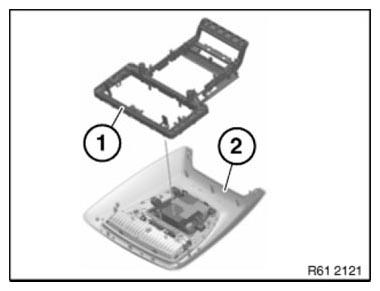

Clip frame (1) into cover (2).

Fig 5: Identifying Roof Switch Frame And Cover

G06895071

Courtesy of BMW OF NORTH AMERICA, INC.

Turn board (1) over in direction of arrow and connect plug connection (2) to board (1).

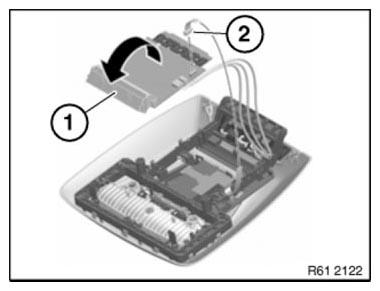

Fig 6: Turning Board

G06895072

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 08/2009:

Rotate PCB (1) in direction of arrow.

Wind cable (2) in direction of arrow and connect with PCB (1).

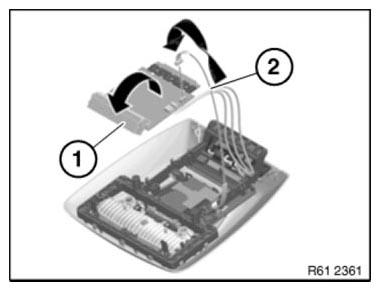

Fig 7: Rotating PCB

G06895073

Courtesy of BMW OF NORTH AMERICA, INC.

Clip board (1) onto frame (2).

Installation note:

Make sure guide (3) is correctly seated in frame (2).

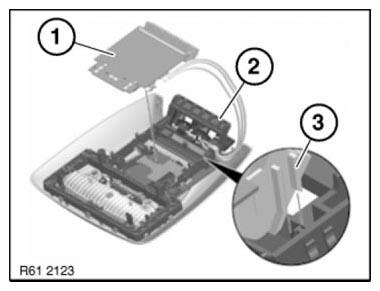

Fig 8: Identifying Board On Frame And Guide

G06895074

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If anti-theft alarm system is fitted, make sure USIS sensor lead (1) is correctly seated in retaining tabs (2) on frame (3).

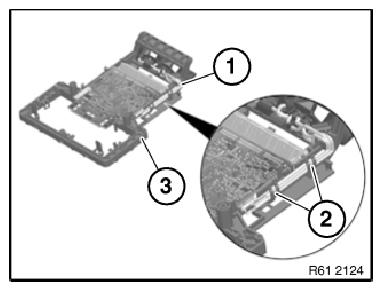

Fig 9: Identifying USIS Sensor Lead And Retaining Tabs On Frame

G08513770

Courtesy of BMW OF NORTH AMERICA, INC.

Clip light pressed screen (1) into light unit (2).

Installation note:

Make sure pin (3) is correctly seated on board (4).

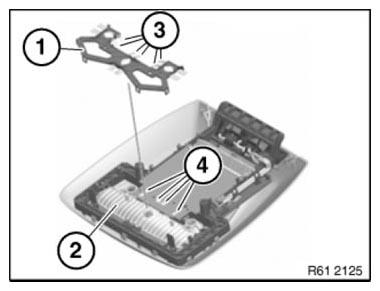

Fig 10: Identifying Light Pressed Screen On Light Unit And Pins On Board

G06895076

Courtesy of BMW OF NORTH AMERICA, INC.

Install bulbs (1) in light pressed screen (2).

Installation note:

Note BULB TYPE .

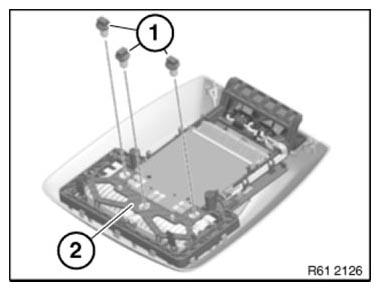

Fig 11: Identifying Bulbs And Light Pressed Screen

G06895077

Courtesy of BMW OF NORTH AMERICA, INC.

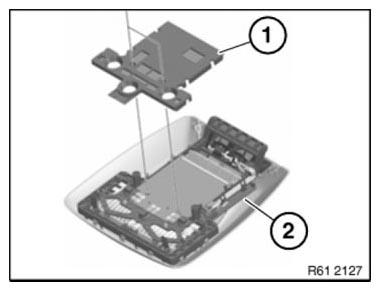

Screw down base (1) to roof switch cluster (2).

Fig 12: Identifying Roof Switch Cluster With Base

G06895078

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out VEHICLE PROGRAMMING/ENCODING .
